XTZ660 1999



Engine
Configuration	4-Stroke, liquid-cooled, SOHC, single	Lubrication	Dry Sump 3.2 litres
Bore & Stroke	100.0 x 84.0 mm	Ignition	Transistor Controlled
Capacity	660.0 cc	Charging system	12v
Compression Ratio	9.2:1	Starter	Electric
Max Power		Transmission	Chain
Max Torque		Gearbox	5-speed
Fuel	Y26PV	Clutch	Wet multi-plate
Chassis
Frame		Wheels
Dimensions	Weight: 171.0 kg Wheelbase: 1,495 mm Length: 2,265 mm Seat Height: 865 mm Ground Clearance: 245 mm	Tyres	90/90-21 120/90-17
Front Suspension	Telescopic forks	Brakes	Single disc f&r
Rear suspension	Monocross	Fuel Capacity	20.0 lit.
Performance
Colours	Dark Green  Blue

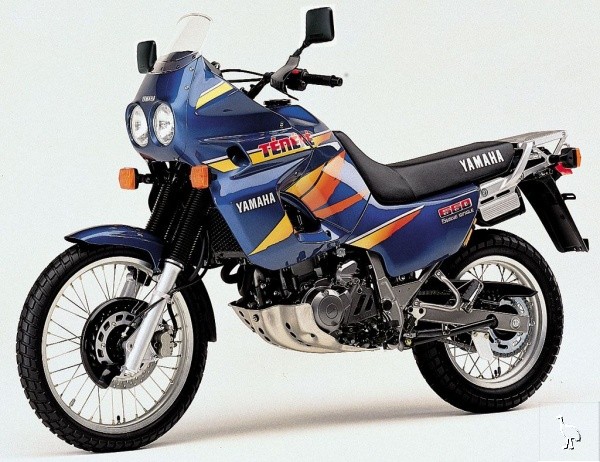

Yamaha XTZ660 1999 Yamaha XTZ660 1999
